Odor Management Ogam Sensors

Ogam Sensors

Odor sensors are an essential element to replace a person's nose.

By using sensors that can detect major odor substances, we can monitor 24 hours in the area where odor is frequently generated. Nowadays, much attention has been paid to the environment and safety. Odor sensors are recognized as essential elements in industrial complexes and residential areas.

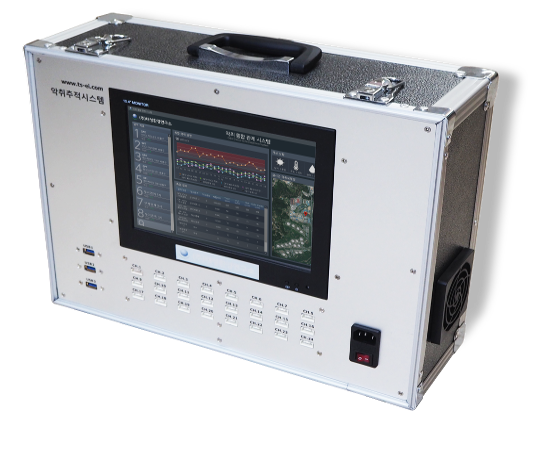

Odor sensor device data
Display value Type of odor, intensity, causing substance, causing substance concentration
Measuring method Atmospheric diffusion method

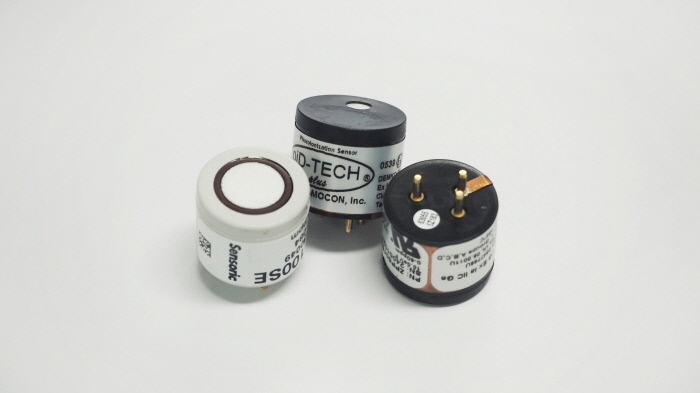

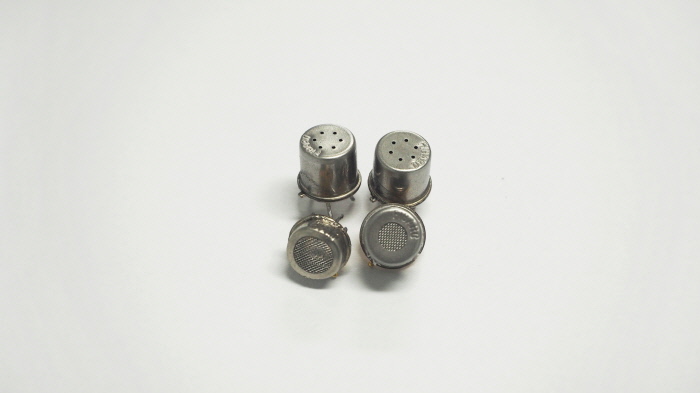

Sensor type PID type sensor, electro-chemical sensor, semiconductor type sensor
Measuring gas VOC series, sulfur series, amine series, fatty acid series, aldehyde series
Resolution ppb
Operating environment -20~60℃, 5~95%RH (non-condensing)
Case Stainless steel, waterproof and dustproof
Communication Wired (TCP / IP, RS232, RS485) Wireless (Zigbee, RF, WCDMA)
Other devices Wind direction, wind velocity, temperature and humidity, atmospheric pressure meter
Other devices Real-time wireless odor monitoring (Zigbee, RF, WCDMA)
Characteristics Real-time monitoring using 24 kinds of sensors
Simultaneous monitoring of VOC, hydrogen sulfide, ammonia, fatty acid series, aldehyde series, and temperature and humidity values
Type of smell and intensity display
Data communication method (wired, wireless, etc.) selectable
Weather measurements such as wind direction, wind speed, temperature and humidity, and atmospheric pressure
Corrosion prevention using stainless steel
Waterproof and dustproof
Ease of maintenance

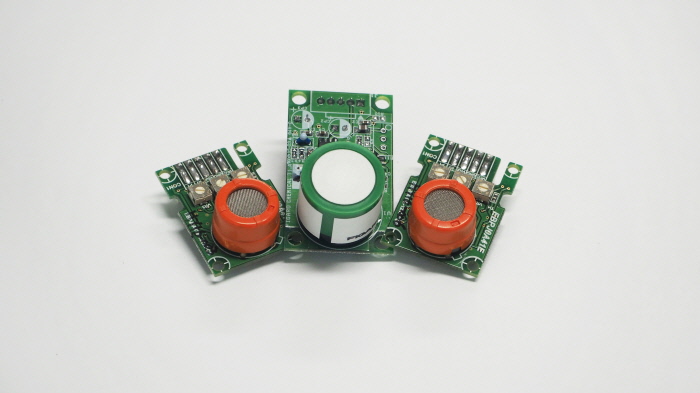

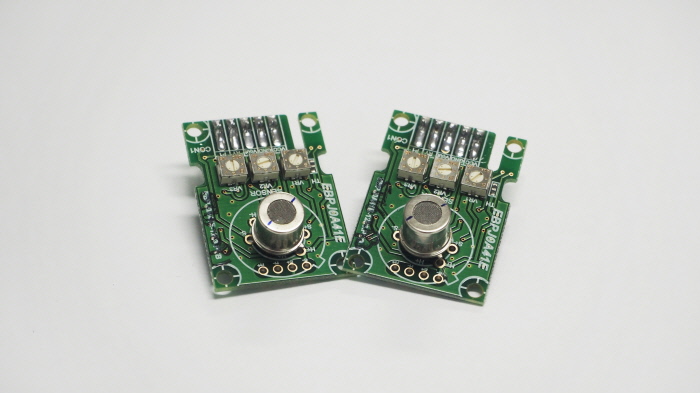

Customized Sensor
Since every business site has different odor causing substances, odor sensor equipment should be constructed selectively. It analyzes mainly the odor substances generated at the sensor installation site and installs the sensor that matches the detected substance among the 24 sensors that can detect odor substances. With these optional sensors, more accurate results can be obtained.
Number (No.) reactant detection concentration(PPM)
1 VOC 0~200
2 VOC 0~20
3 Carbon dioxide 0~1%
4 Methane 0~5%
5 Hydrogen sulfide 0~30
6 Ammonia 0~100
7 Ozone 0~1
8 Nitrogen dioxide 0~50
9 Ammonia 0~100
10 Hydrogen sulfide 0~30
11 Sulfur dioxide 0~20
12 탄화수소 0~1000
13 Hydrocarbon 0~3000
14 Proton butane 0~1000
15 Hydrogen 10~1000
16 Alcohol 0~100
17 Freon 0~1000
18 Hydrogen 0~100
19 VOC 0~1000
20 Ammonia 1~50
21 Alcohol Ammonia VOC 1~10
22 Trimethylamine hydrogen sulfide 1~10
23 Alcohol organic solvent 50~5000
24 Hydrogen alcohol 1~10
